How to Build a MAME Arcade Cabinet DIY

If you are working out how to build a MAME arcade cabinet DIY, begin with the games and the room. The cabinet is a housing for a computer, a display and controls. Each needs a known place, an access route and a way to be removed later. Start with a simple shell rather than a cabinet photo you hope to copy.

Choose the display and controls first. Make a paper panel, check the room and doorway, then create the cut list from actual material thickness. Assemble the enclosure square, dry-fit the parts and finish the wood before final installation. Use enclosed power supplies and lawful game files. Test the computer outside the cabinet so software faults do not become woodworking faults.

Plan a MAME arcade cabinet DIY build around the room

Decide whether the cabinet will stand on the floor or sit on existing furniture. A tall cabinet adds transport and stability questions. A small tabletop shell still needs a surface that can hold it and the force of normal play. Neither format removes the need for a measured plan.

Use the cabinet dimensions checker before you buy sheets or hardware. Measure the narrowest clear opening on the delivery route. Include door handles and trim. A clear room footprint does not prove that a tall box can turn through a hall.

Mark the screen and control heights on a wall with removable tape. Put a cardboard control panel at the proposed height. Stand or sit at it as you intend to play. Check reach with two players if needed. Those heights are personal choices, not universal arcade measurements.

The original blueprint worksheet shows a plain enclosure study with a cut-list method. Its dimensions show how panels fit together. They are not a promise that your display or mount, nor your floor will suit that shell. Change the design on paper first, then check every dependent panel.

Create a materials and hardware list

Keep the shell parts and the game system in separate lists. That makes missing work easier to spot. A cabinet kit can contain wood without a display or input board. A bag of buttons can lack the wiring and mounting parts needed to use them.

For the enclosure, list these groups:

• Panels: two sides, a top and base, back access panels and any front pieces.
• Bracing and joinery: the chosen fixings and any rails or battens suited to the material and actual joint.
• Display mount: the screen maker's allowed bracket, screw type and installation limits.
• Control panel: the checked button layout, lever mounts and a removable panel arrangement.
• Finish: the chosen surface finish, edge treatment and its drying instructions.

For the game system, record the exact computer and display models. Add the input interface and controls, plus compatible wiring. Include audio if it is separate. List enclosed power adapters, cable retention and a service keyboard. Do not hide an unknown part under a generic “electronics” total.

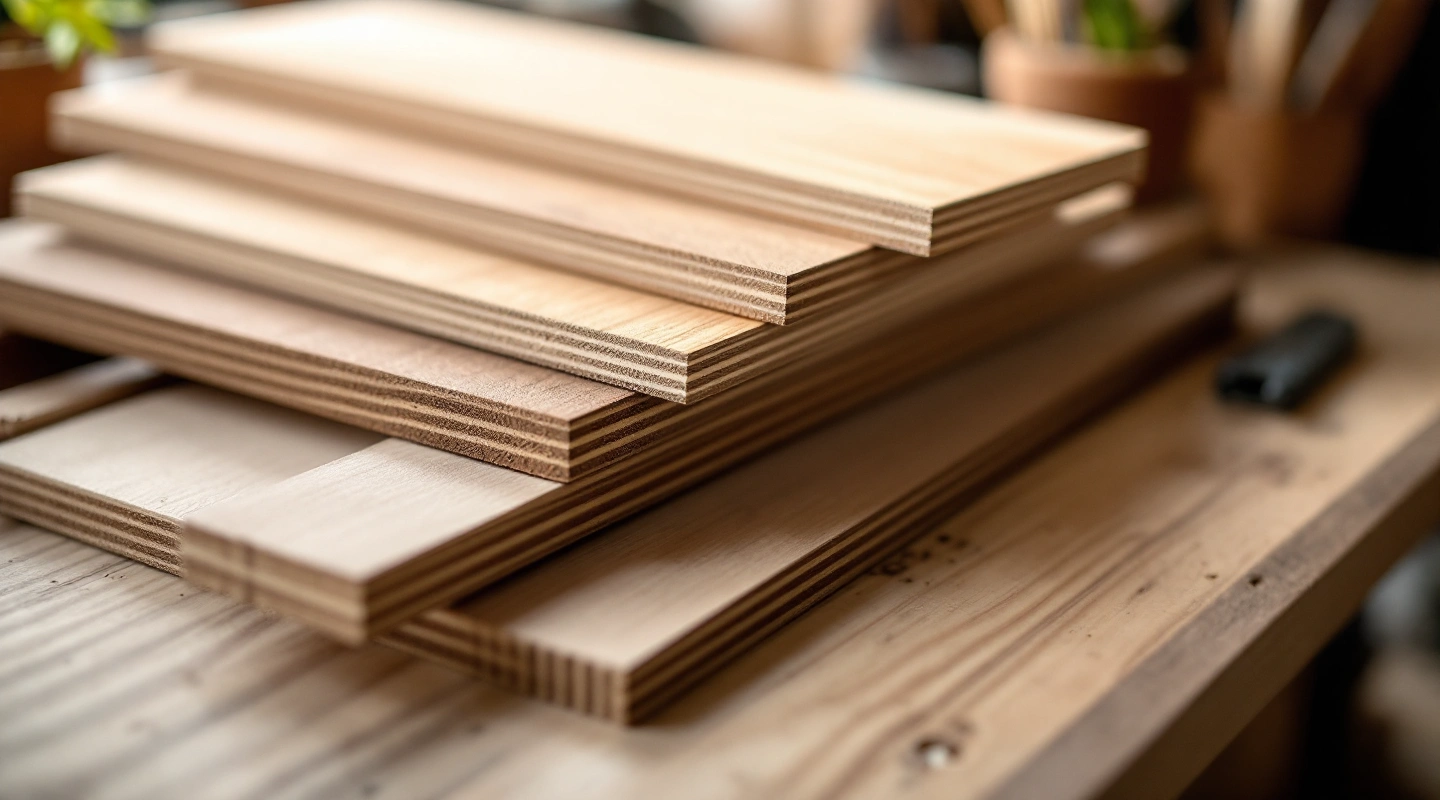

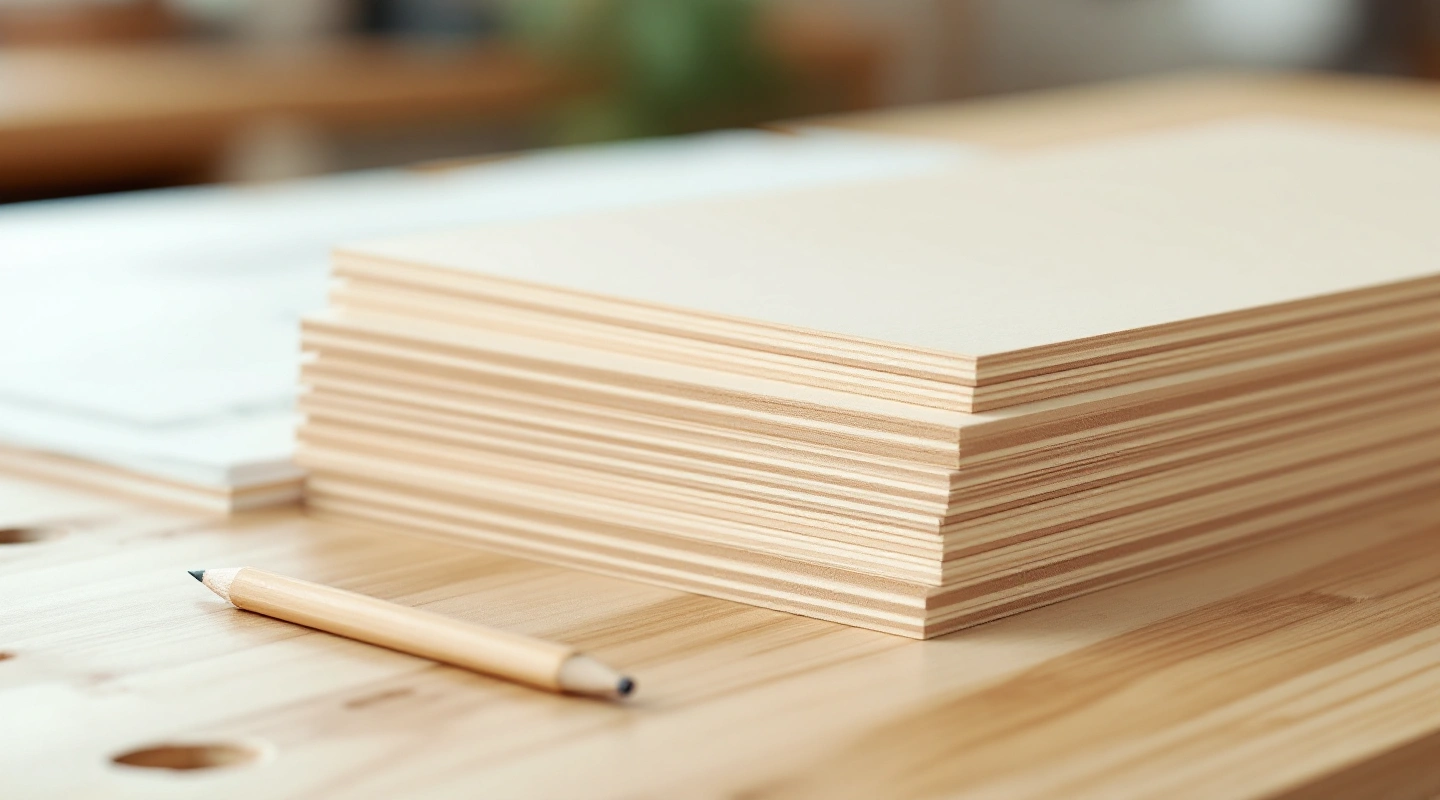

The wood selection guide explains what the sheet material changes. Measure the actual thickness before finalizing internal panels. A sheet sold under a nominal size may not match the dimension used in a borrowed plan.

Cut the enclosure from a checked list

Assign each panel a letter. Put its finished size and quantity on the cut list. Mark the face that will show and the direction that matters for the finish. Lay the pieces out on paper at the sheet size you can actually buy. Allow for the blade's cut width, called kerf, between pieces.

Use a practice cut to confirm the tool setup. Check the first finished panel before cutting every matching part. A long side that is slightly out of square will affect the back and shelves. Label pieces as they leave the saw so the chosen top does not become the bottom during assembly.

OSHA's woodworking guidance describes machinery and dust hazards. Keep guards in place and follow the tool maker's instructions. Use dust control at the cutting source. The wood-dust guidance is a primary source for that precaution; a clean-looking room does not prove the air is clear.

Cut openings only after checking the real part. A button drawing from a different family can have a different clearance hole. A screen's advertised diagonal cannot define its outer case opening. Keep your finished front trim until after the real image and control fit checks.

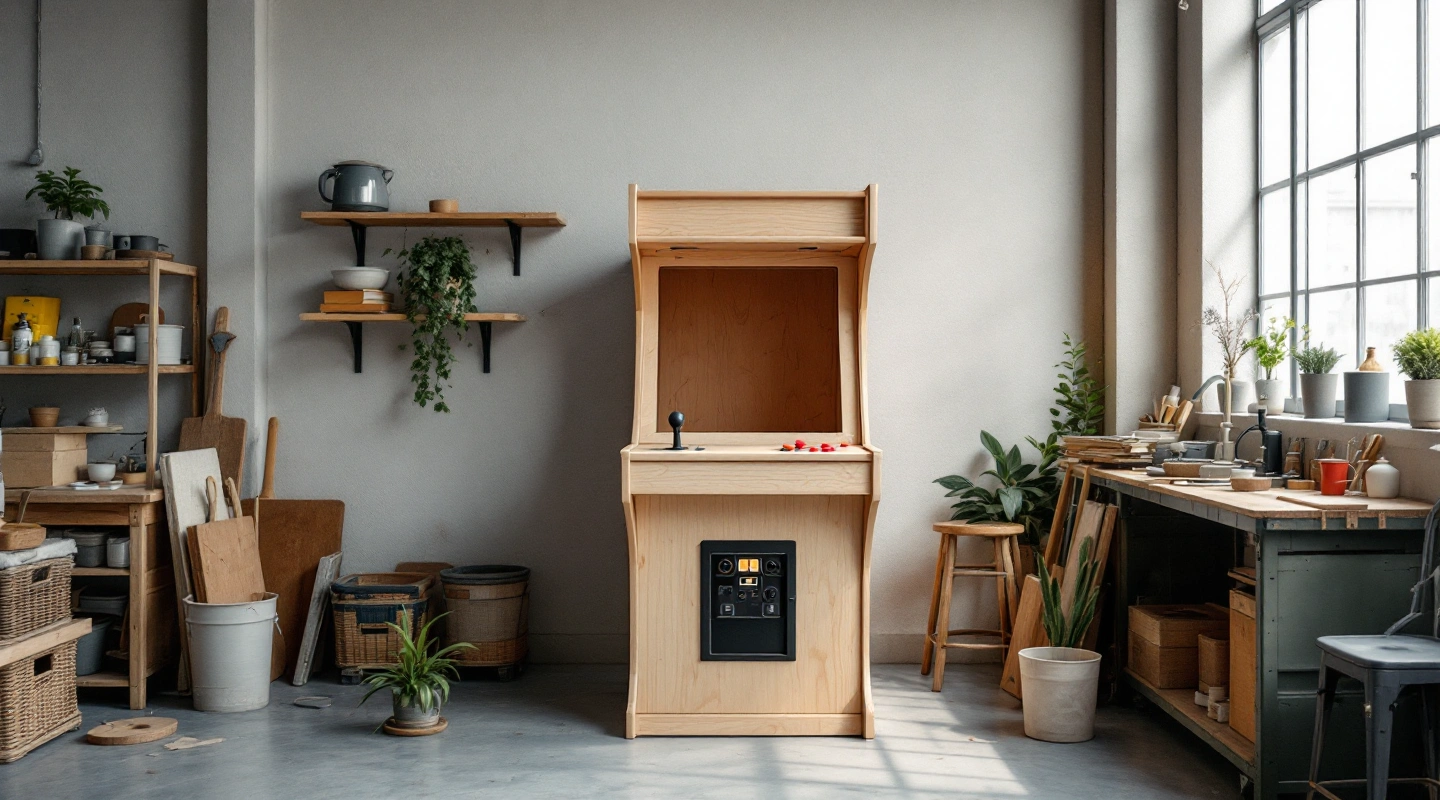

Assemble the shell with checkpoints

Dry-fit the sides with the top and base on a flat work surface. Confirm that all matching edges meet as planned. Check both diagonals of each rectangular opening. Equal diagonals help check square, but they do not prove the structure is strong enough for its load.

Fit the chosen rails or battens using the fixing maker's guidance for the actual sheet material. Pilot holes, edge distances and fastener length depend on that joint. Do not treat a generic screw count as an engineering rule. Keep the access side removable while the internal arrangement is still being checked.

Work through the shell in a controlled order:

1. Base and sides: align the reference edges and confirm the outside width.
2. Top and rear bracing: check the opening diagonals again before fixing them.
3. Internal shelves: check that the computer and adapters can be removed through the access opening.
4. Display position: dry-fit the allowed bracket and complete case.
5. Control panel: fit the scrap-tested panel with the real underside hardware.
6. Rear and front access: check that each panel opens without pulling a cable.

Stop if a joint moves, a panel bows or the unit rocks. Do not rely on a display bracket or a thin rear cover to correct an unstable shell. Revise the bracing and base arrangement against the actual loads and fixing instructions before adding more equipment.

Fit the display and controls

Use the monitor fit record to check the image rectangle, outer case and input. Keep the screen in its enclosure. Leave room for cables and maker-specified ventilation. Fix the allowed bracket to the planned structure, not to decorative trim.

The button layout tool supplies hole centers and checks the entered envelopes. Fit the actual buttons and lever to scrap before drilling the final panel. Include the thickness of any clear cover or artwork in the mounting calculation.

Mount the input interface so its terminals are protected from loose objects. Follow its exact wiring instructions. Keep removable connectors identifiable. Labels such as P1 fire or P2 start are more useful during fault finding than a set of indistinguishable wire tails.

Do not alter mains wiring, open a power supply or work on a CRT as part of this build. Use intact enclosed equipment as directed by its maker. Keep low-voltage signal wiring distinct from power leads, and do not run cables across openings where a panel can pinch them.

Configure lawful software before closing the cabinet

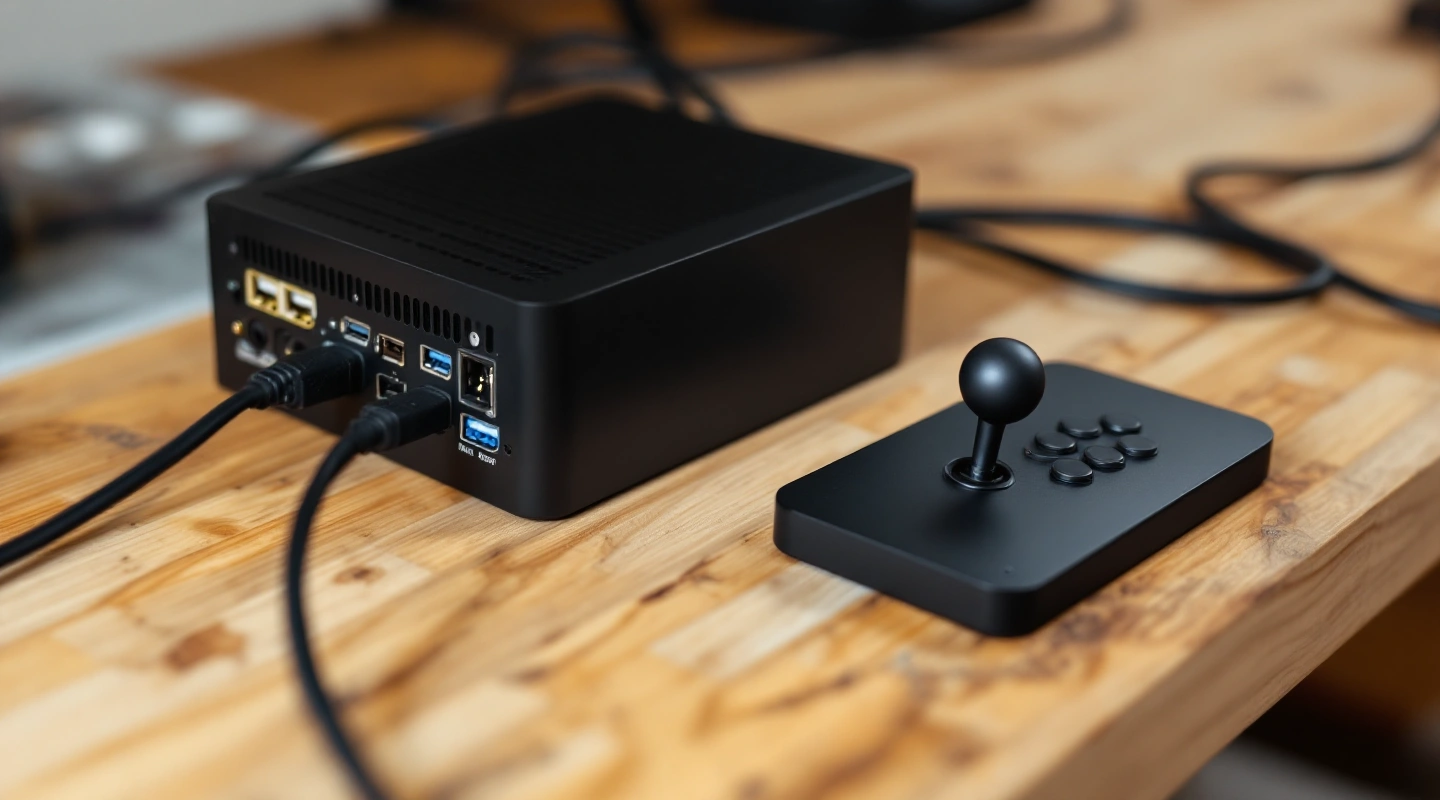

MAME's introduction describes the current host requirements. Do not assume that every small computer runs every emulated system well. Choose the games first, then check that machine's performance at the chosen display settings.

Set up one lawful game outside the cabinet. Test the display and sound, then each input. Save the input settings and restart the computer. A setup that works only until the next restart is not ready to be closed inside the enclosure.

MAME's legal information separates the emulator's license from rights to game ROMs. A large included game count does not prove a seller has those rights. This build includes no game-file downloads or copied artwork. The MAME configuration guide covers input mapping and file-version checks.

Finish and check the complete MAME arcade cabinet DIY build

Remove electronics before sanding or coating the wood. Use the finish maker's drying and ventilation instructions. Keep dust away from displays and connectors. Refit the checked parts only after the finish has cured as directed.

Before regular play, check that no fastener has loosened, the unit stands as chosen and access panels close without force. Confirm that vents remain clear after the cabinet is in its final room. Test the controls from each player position and keep a simple record of which cable serves which device.

More in this guide

The enclosure work continues in the blueprint and cut-list worksheet, the room and doorway checker and the MDF versus plywood guide. For the game system, use the MAME setup explanation. Each has a separate job so you can return to the part you are changing.

Frequently asked questions

Should I buy the computer before cutting wood?

Choose and bench-check the game system first. You need its complete dimensions, ventilation needs and connector space to place it in the shell. It should also run the chosen lawful game at the chosen settings. A faster computer cannot solve a display or mount that does not fit.

Can I use any free cabinet plan?

Read its units and material thickness first. Check that it includes the views and cut details you need, and respect its use terms. Do not scale it to fit a sheet of paper. An old plan may also assume a bulky display or control arrangement unlike your chosen parts.

Does a MAME cabinet need coin hardware?

Not for a normal home input setup. A mapped coin input can serve the game's credit control without a physical coin mechanism. Keep coin and start inputs separate from action buttons in your input plan. The emulator documentation explains the controls; the game's software rights remain a separate question.

Is the cabinet finished when the game starts?

No. Check restart behavior, every player input and access to the computer. Inspect the assembled shell and cable routes in its final room. Leave the maker's vents clear. A working first screen proves only that some parts power on; it does not verify the whole enclosure or delivery route.

Verdict

The useful answer to how to build a MAME arcade cabinet DIY is an ordered set of checks. Bench-test the game system, mock up the controls and make the enclosure fit those known parts. Begin with the blueprint worksheet and keep the cut list tied to your real measurements.
